2700K Warm White SMD 3528 LED Strip Lights 12V
  • 2700K Warm White SMD 3528 LED Strip Lights 12V
  • 2700K Warm White SMD 3528 LED Strip Lights 12V
  • 2700K Warm White SMD 3528 LED Strip Lights 12V

2700K Warm White SMD 3528 LED Strip Lights 12V

2.0 USD
Min. Order:
5 Piece/Pieces
Trade Term:
FOB,EXW
Payment Terms:
T/T, WU
Place of Origin:
Guangdong, China (Mainland)
Means of Transport:
Ocean, UPS, Air
Production Capacity:
50,000meters a week
Packing:
netual packing
Delivery Date:
7-12days
Brand Name:
Prime
Input:
12V/ 24V
CCT:
2700-3500K
Certificate:
CE, RoHS
Watt:
4.8W/ 9.6W per meter
IP:
IP20, non-waterproof
Warranty:
2 years
PCB:
8 or 10 mm
Custom CCT:
Acceptable
Dimmable:
YES

  • Product Description
  • Related Products
  • Related Links
  • 2700K Warm White SMD 3528 LED Strip Lights 12V

    2700K Warm White SMD 3528 LED Strip Lights 12V  are the most welcomed item among the range, they comes with 3528SMD in 2800-3300K or some special requirments like 2600-2700K, which is terrific for home use or clubs, where needs to make comfortable and warm feeling.


    60/120LEDs/M, 12/24V input


    For different demands, Prime offer you 3528 LED strip lights with 4-5LM per LEDs, 5-6LM per LED or  6-7LM per LED, for your choices, prices vary accordingly.

    Warm white in 2200K, 2700K and 3000K for options

    Male-female LED strip connectors for your options

    Male-female Waterproof LED strip connectors for your options

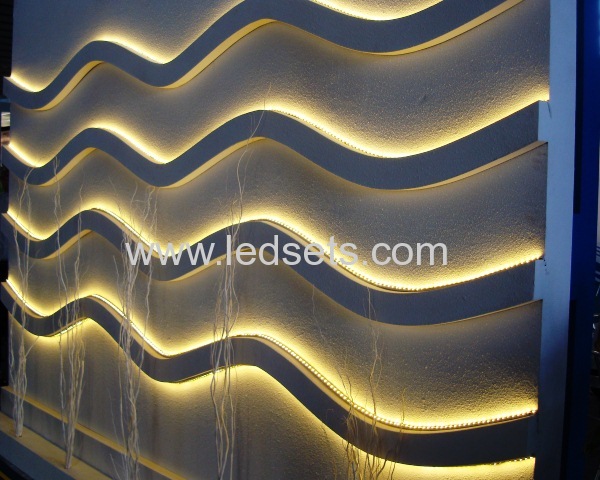

    2700K Warm White SMD 3528 LED Strip Lights 12V can be also used in a wide variety of applications, such as signage, channel letters, backlighting, panel edge lighting, under cabinet lighting, landscapes, step and stairs, motorcycle and automotive lighting, marine and recreational vehicle, retail and display case lighting, glass art, home theaters, media rooms and more.

    > Dimmable brightness and changeable color as you like;

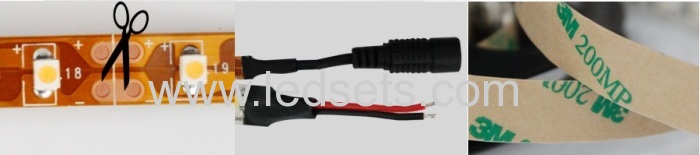

    > Flexible and can be separated in every 3LEDs along cut-edge or re-joint;

    > Easy to install with 3M tape on backing or clips;

    > Safe application at 12V or 24V;

    > No hazards to environment;

    > Long lifespan of 50,000 hours.

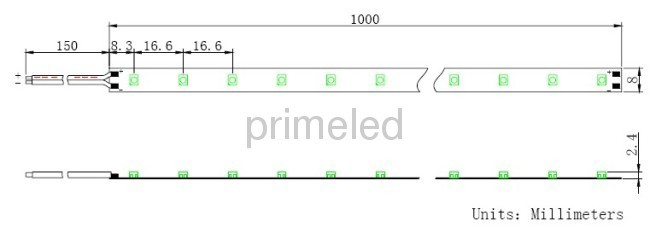

    Size of the LED Strip Lights,60led/m

    Size of the LED Strip Lights,120led/m

    LED Strip Lights are available in four varieties:

    A) Regular Flex strip, 3M tape on backing, IP20;
    B) Water resistance type with an epoxy resin or silicone gel, 3M tape on backing, IP66;
    C) Water resistance type with a protective Silicone jacket, can be fixed with clips, IP66
    D) Waterproof type with silicone/PVC jacket and silicone gel inside, IP68.

    Technical Data 2700K Warm White SMD 3528 LED Strip Lights 12V

    PartNO. (IP20)

    PFS-3528W60A-12

    PFS-3528W120A-12

    Voltage:

    12V or 24V

    12V or 24V

    Size:

    10mmwide, 5 meters a reel

    10mmwide, 5 meters a reel

    LEDType:

    3528SMD

    3528SMD

    Quantity:

    60LEDs per meter

    120LEDs per meter

    Power:

    4.8Wper meter

    9.6Wper meter

    White:

    2800-3300K

    2800-3300K

    PCBin:

    Copper,white or black

    Copper,white or black

    BeamAngle:

    120degrees

    120degrees

    ExpectedLife

    50,000hours

    50,000hours

    Warranty:

    TwoYears

    TwoYears

    FAQ:

    1. Can we cut them in short pieces, and re-joint them ?


    Yes, can be cut in every 3 LEDs, minimum, and can re-joint with cables.

    2. How Can I make them dimmable or color-changing?

    First, you need a power supply (transformer) to convent main voltage to 12V or 24VDC;

    Second, get a dimmer or controller from us or your market, wire them follow our instruction, and then power on;

    Third, you go


    3. How to install led strip lights?
