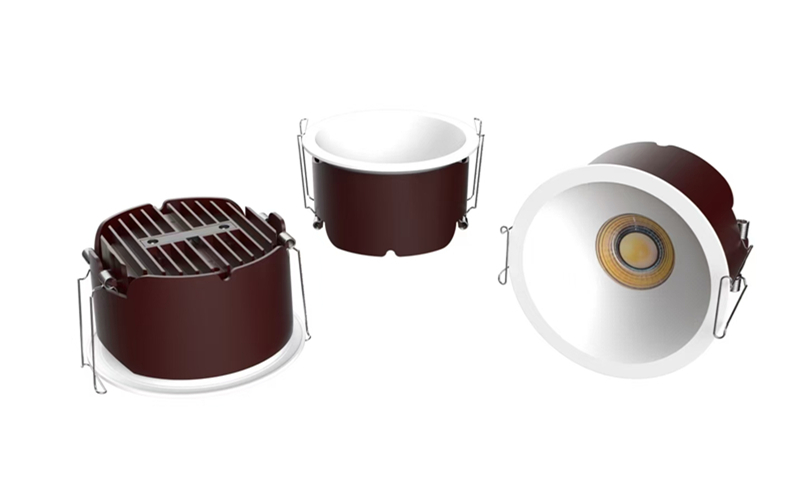

10W 15W 20W COB LED downlight
The Series Anti Glare Downlight is specifically designed with deep lighting source and reflector, to reduce glare and provide comfortable lighting in Hotels, restaurents, Hospitals, shops, Meeting rooms, Offices, Buildings, Schools and so on. 10W 15W 20W COB LED downlight are nice replacements to your exsiting downlights with CFL or halogens, with RA90 Bridgelux COB LED 170LM/W
2700K, 3000K, 4000K, 5000K and 6000K, for your options
1. Die casting aluminum housing and heat disspition;
2. COB LED as lighting source, LESS Loss of light refraction and soft illumination;
3. Bridgelux/Philips COB LED is duriable and high output;
4. Name LED driver with high quality;
5. Special designed reflector leads to similar brightness to halogens;
6. 4000K and 5000K are popular for shops while 2700K is asked more for restaurants;

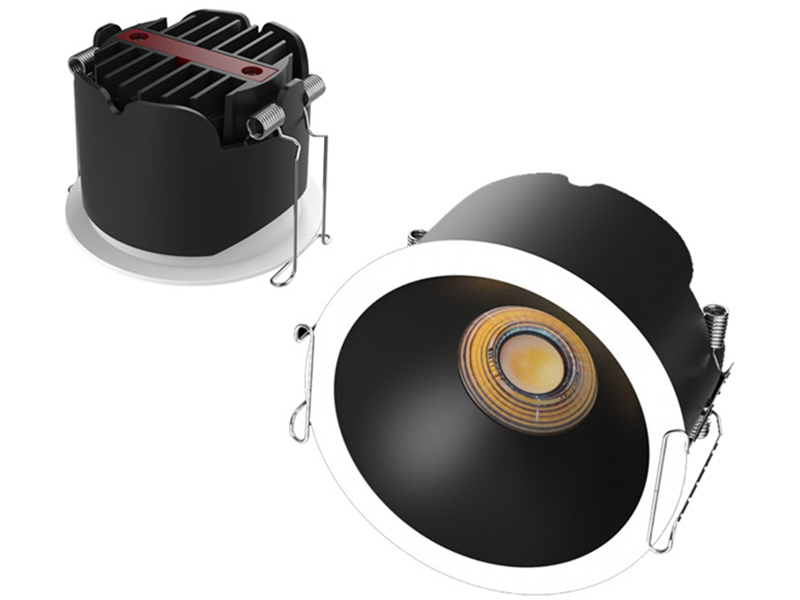

Black reflector cup is available as well as white
SMD type is also available in 10W, 20W, 30W and 40W
The LED Downlight is mostly installed into a hollow opening in a ceiling as wall washer. 24° and 36° are suitable for wall washing, while 50° is good for general lighting recessed in ceiling.
Details of the light
Item | 10W 15W 20W COB LED downlight |
Power | 10W | 15W | 20W |
Dimension | φ96*H58mm | φ106*H63mm | φ123*H68mm |
Cutout | 90mm cutout | 100mm cutout | 115mm cutout |
Lighting Source | Bridgelux/Philips | Bridgelux/Philips | Bridgelux/Philips |
Input | 100V- 240V AC | 100V- 240V AC | 100V- 240V AC |
Luminous flux | 1000LM | 1500LM | 2000LM |
Efficiency | 90-100LM/W | 90-100LM/W | 90-100LM/W |
CRI | Ra90 | Ra90 | Ra90 |
View Angel | 24°, 36°, 50° | 24°, 36°, 50° | 24°, 36°, 50° |
Life Span | 30,000hours | 30,000hours | 30,000hours |
